Cattani Esam UK Ltd

Consumables

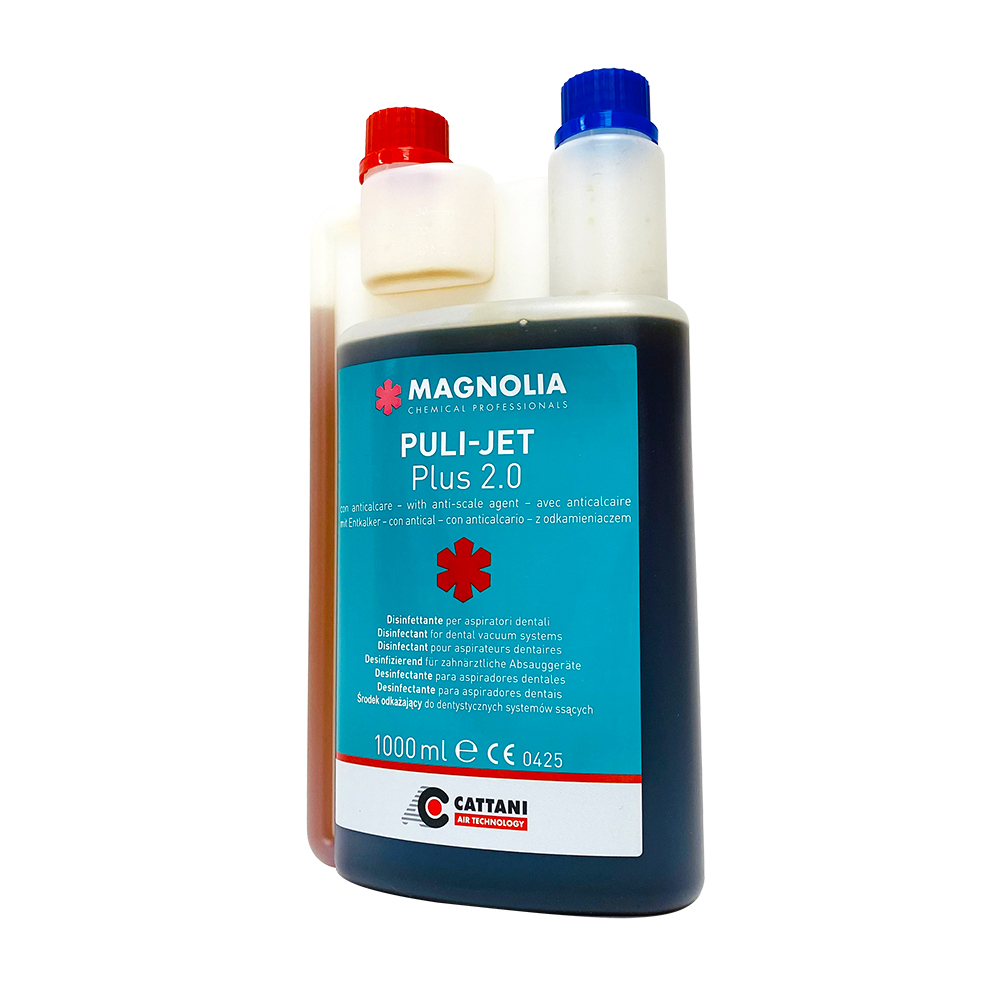

Magnolia Cleaning – Puli-Jet 2.0 (Antifoaming Cleaner)

Disinfects, deodorises and cleans all dental aspirators (wet, semi-wet and dry line), does not contain aldehydes and phenol. 1 litre makes up to 125 litres of disinfectant or 250 litres of cleaner. WHEN TO USE: Every evening. HOW TO USE: 1. Shake the bottle. Then unscrew red cap slightly. 2. Squeeze bottle to distribute 10ml of liquid to top container. 3. To mix, fill the ‘Pulse Cleaner Bucket’ with warm water (approx temp 50°c) up to the third marker, then unscrew the red cap on the Puli Jet bottle fully and pour the Puli Jet Plus into the ‘Pulse Cleaner bucket’. GENERAL CLEANING: We recommend that you cleanse the aspiration system every evening, at the end of work. For this, fill the Pulse Cleaner Bucket up to the third marker with warm water (approx temp 50°c) and add 10ml of Puli Jet Plus solution. DISINFECTION: We recommend to disinfect the aspiration system once a week with a higher concentrate of Puli Jet Plus. For this, fill the Pulse Cleaner Bucket up to the third marker with warm water (approx temp 50°c) and add 20ml of Puli Jet Plus solution. Pour any excess down the spittoon. RANGE OF ACTION: Detergent disinfectant with bactericide, fungicide, virucide (HBV, HCV, HIV) and tuberculocide, proven effective in less than 15 minutes. Conforms to EN14476. Anti-scale. Class IIa medical device CE 0425. EN14476. EN14563. EN14562. EN14561. EN13624. EN13727.

Large Equipment

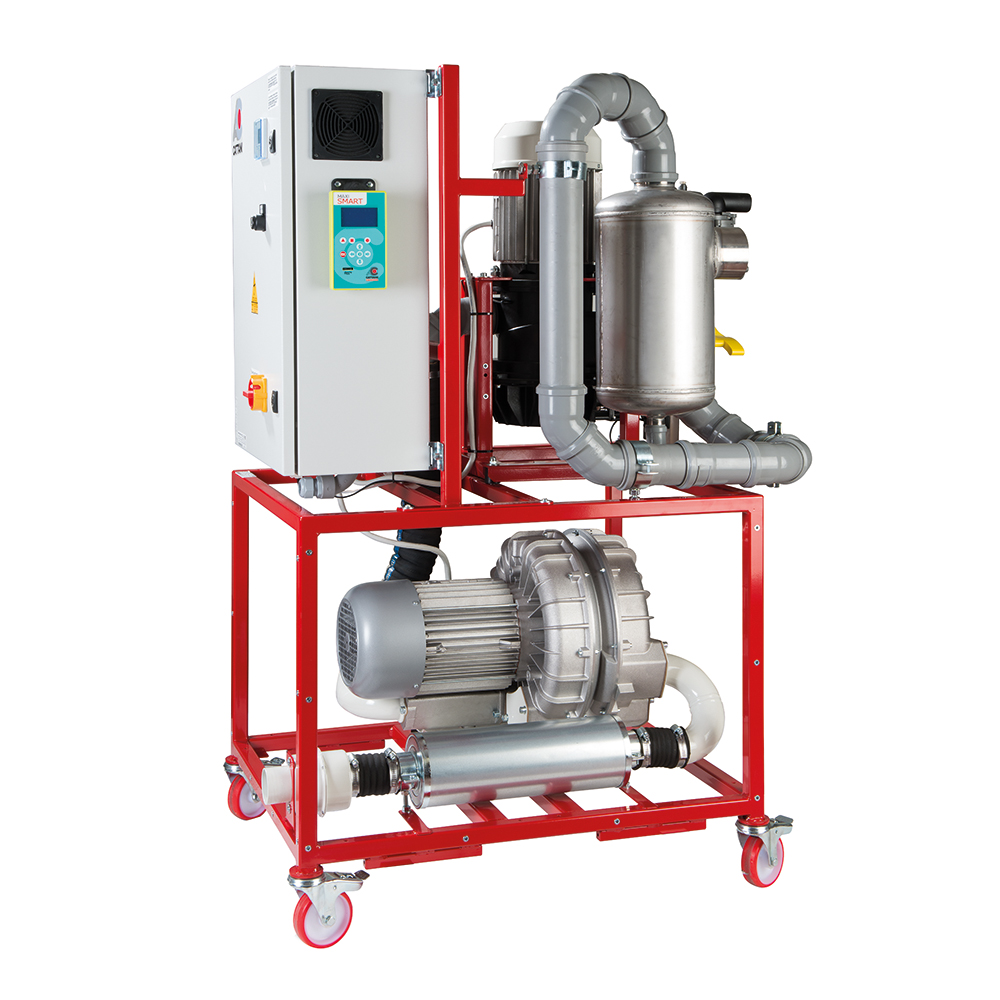

Maxi Smart – Multiple Surgery Suction System

Maxi Smart is ideal as a new installation, as a replacement for an existing system, or as an emergency standby system for hospitals and larger installations. Featuring Cattani’s extremely powerful Maxi Jet 2V LHT motor. Providing high airflow and producing 5000 litres per minute at 240mbar, for up to 15 surgeries. Maxi Smart systems use flow target technology unique to Cattani, flow target guarantees 300 litres per minute air flow at every suction tip regardless of main pipework diameter and length. Maxi Smart can be parallelled together for larger installations, variable speed motors with inverter control keeps running costs to a minimum. Connect this unit via the free Cattani SmartApp, which enables professionals to check unit status, alarms, servicing and maintenance requirements*. The digital display informs the user of the amalgam container level, operating temperature and hours worked for accurate servicing. Maxi Smart suction systems come complete with silencer and installation kit, further details can be found in our Catalogue. TUV certified 98.7% amalgam retention. Maxi Smart can be purchased with a fitted sound-reducing cabinet, which reduces noise levels to 68 dB(A). Maxi Smart is supplied with a 1 year warranty*. An additional 2 year warranty* can now also be purchased, increasing the warranty from 3 to 5 years. For further information about this product and any available accessories please see our Catalogue. * Connection to the SmartApp is a requirement of the units warranty. Warranties are subject to Terms and Conditions of servicing schedule, additional 2 year warranty must be purchased with unit at point of sale. HTM 2022 Compliant 5.23 cannula test SHTM 2022 Compliant 5.23 cannula test ISO 10637 Compliant vacuum ISO 11143 Compliant amalgam separation 98.7% Deutsches Institut fur Bautechnik Z-64. 1-10 98% Medio-Jet 2v special + control board with VSD (inverter)

Large Equipment

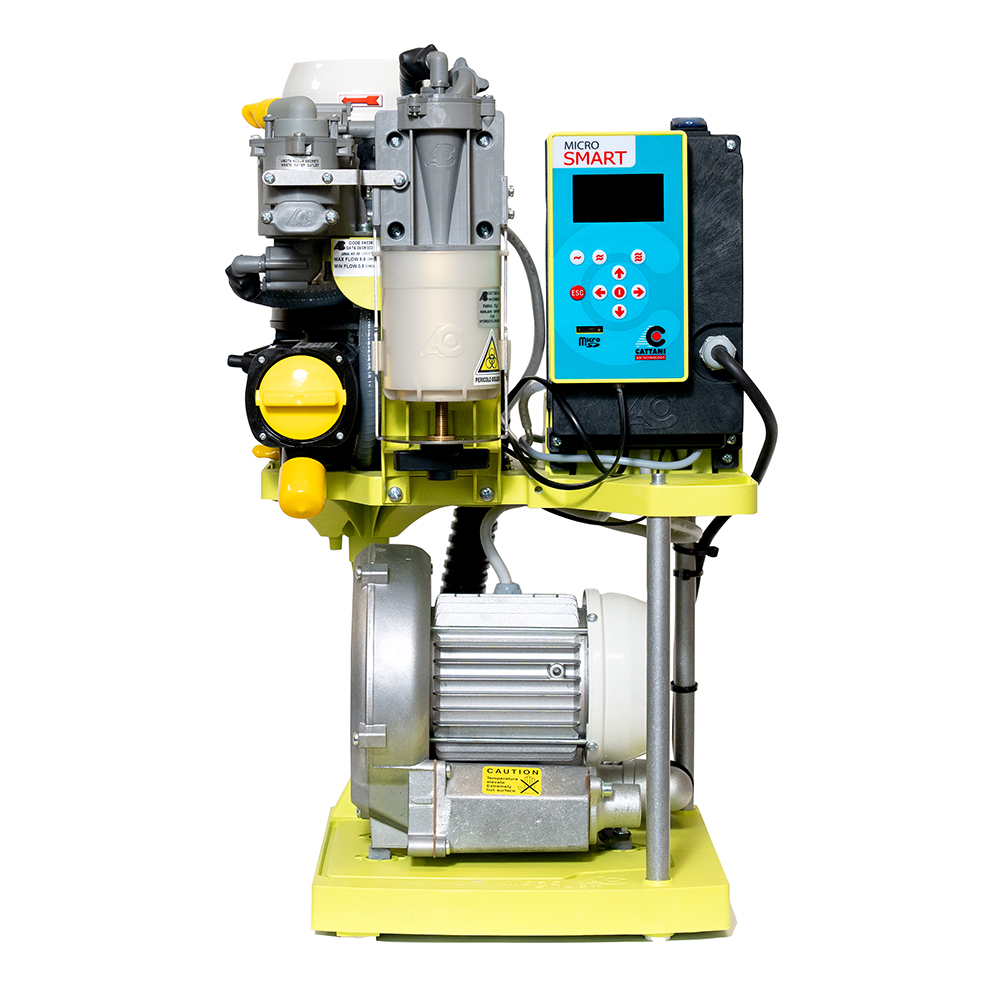

Micro Smart – Single Surgery Suction System

Micro Smart is a flexible, reliable and powerful single surgery suction system, suitable for all dental procedures. Variable speed, reducing power consumption and heat generation. Supplied pre-wired, pre-programmed and completely assembled, with additional benefits that reduce maintenance time. Connect this unit via the free Cattani SmartApp, which enables professionals to check unit status, alarms, servicing and maintenance requirements*. The digital display informs the user of the amalgam container level, operating temperature and hours worked for accurate servicing. Micro Smart has 3 programmable vacuum levels: – LOW VOLUME for Orthodontics and Saliva ejection. – MEDIUM VOLUME for Conservation. – HIGH VOLUME for Oral surgery and Implantology. Micro Smart suction systems come complete with a care kit, further details can be found in our Catalogue. TUV certified 98.9% amalgam retention. A sound reducing cover can be purchased and fitted to this unit, reducing noise levels from 64-71dB(A) to 63-68.5dB(A). Micro Smart can be purchased with a fitted sound-reducing cabinet, which reduces noise levels to 41-48 dB(A). Micro Smart is supplied with a 3 year warranty*. An additional 2 year warranty* can now also be purchased, increasing the warranty from 3 to 5 years. For further information about this product and any available accessories please see our Catalogue. * Maximum 900L/min at 210mbar. Connection to the SmartApp is a requirement of the units warranty. Warranties are subject to Terms and Conditions of servicing schedule, additional 2 year warranty must be purchased with unit at point of sale.

Large Equipment

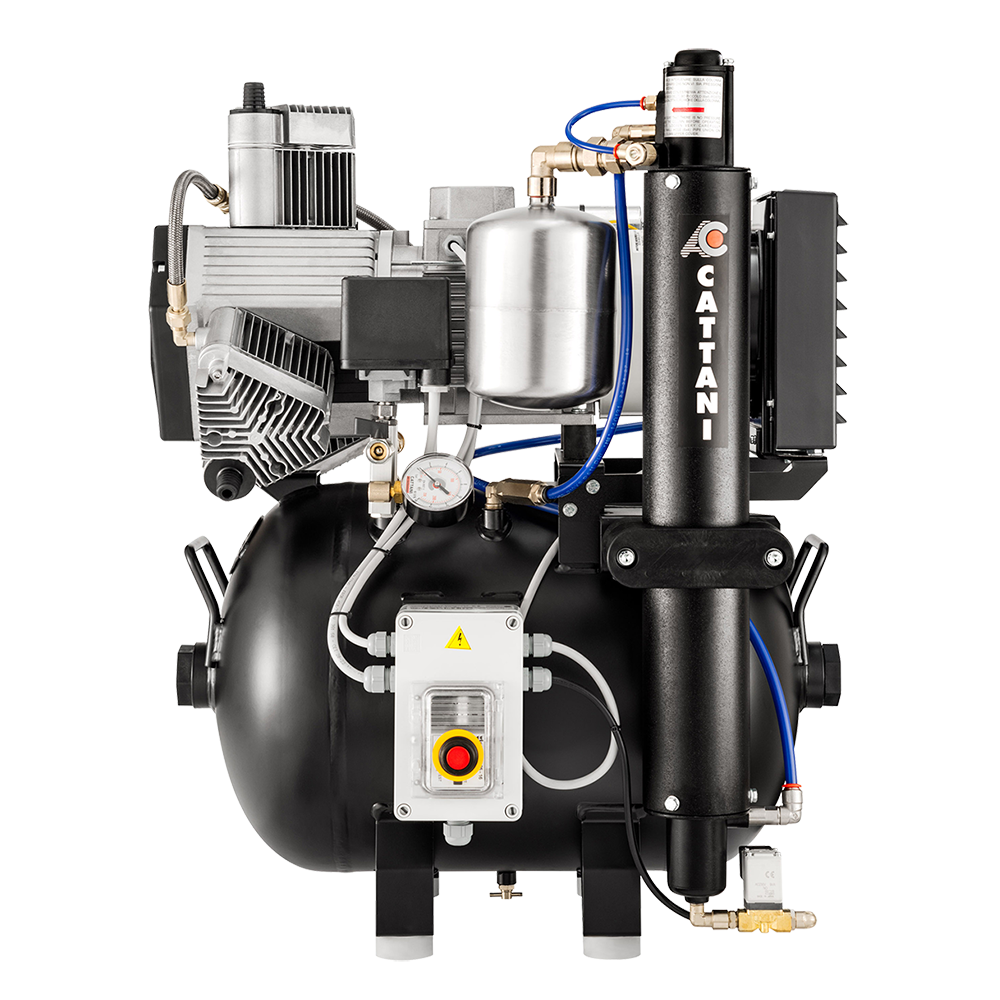

Oil – Less Compressors – Single Surgery to Bespoke Systems for Hospitals

Our range of compressors produce clean, dry, oil-less air, protecting the dental unit, rotary instruments, staff and patients. Compressor filters provide superior air purification, however these can be further upgraded to HEPA H14 filters providing an even higher level of filtration. Cattani Compressors are hand built and quality checked at every stage of production and fully conform to ISO standard 22052. BIOCOTE® Silver Ion Technology – Our Compressor receivers are coated internally, delivering effective protection against microbes such as bacteria and mould. Permanent antimicrobial protection, guaranteed. The exterior is coated with an electrostatic paint. Cattani Compressors are built with a self-purging drying column, requiring minimum maintenance. This compressor can also be purchased with a sound reducing cover (AC300Q). All Cattani Compressors can be supplied with a high quality pressure regulator. Cattani compressors when correctly specified will deliver the minimum requirements of 50 Litres / minute per chair (at 5 bar pressure) when running simultaneously. For maximum efficiency, reliability and longevity, the compressor’s plant area should have an operating range of between +5 – 35°C. There is an option to upgrade to HTM2022 guidelines, please take a look at our upgrade kits which can be found here. All Cattani Compressors are supplied with a 5 year warranty*. An additional 2 year warranty* can now also be purchased, increasing the warranty from 5 to 7 years. For further information about this product and any available accessories please see our Catalogue. *Warranty is subject to T&Cs of servicing schedule, additional 2 year warranty must be purchased with the unit at point of sale.

Large Equipment

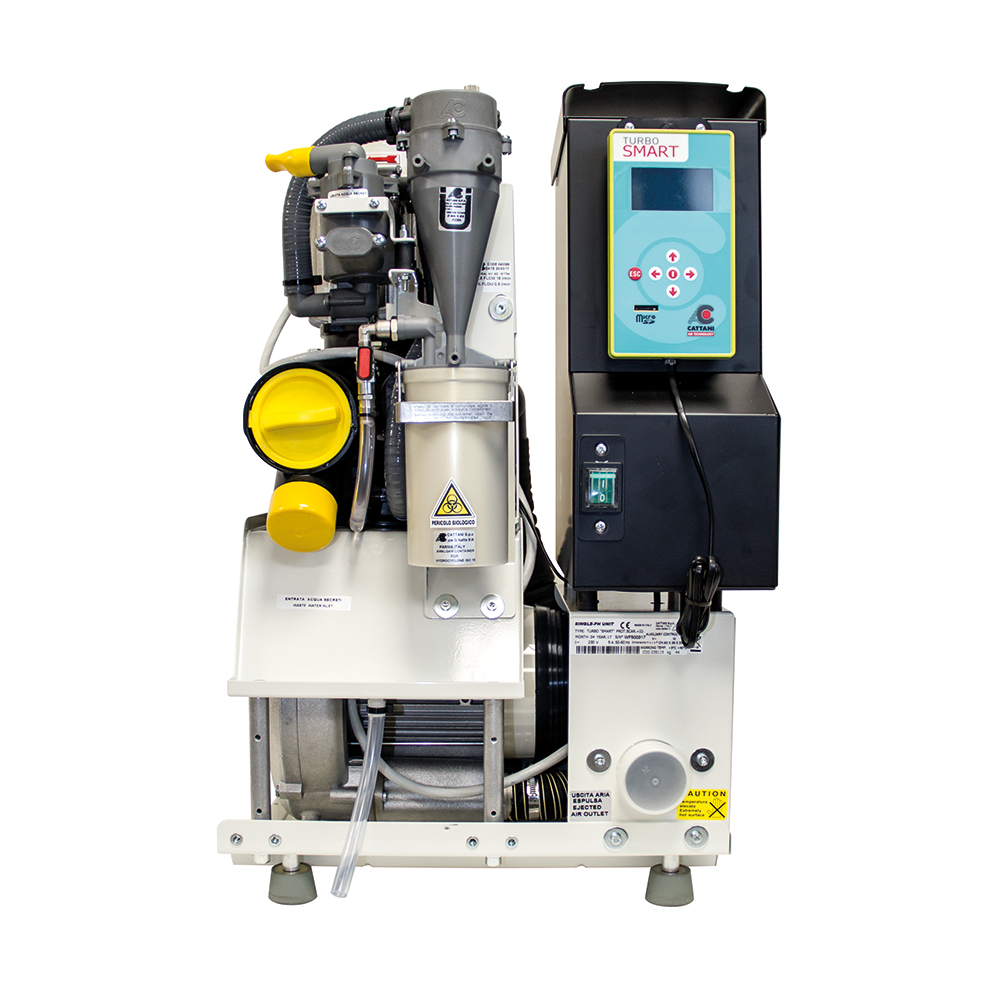

Turbo Smart – Multiple Surgery Suction System

Turbo Smart is a powerful, variable speed suction system, with high airflow and high vacuum power. Supplied for 2 surgery use, upgradable to 4 surgeries if required. Turbo Smart systems can automatically alter vacuum on demand and respond to any change in use from the surgeries. When a suction tip is opened, Turbo Smart speeds up to meet the extra demand. When a suction tip is closed, it slows down. The system adapts its speed to cope with extra demand and when other surgeries are using the unit. The result is efficient and more consistent suction. Connect this unit via the free Cattani SmartApp, which enables professionals to check unit status, alarms, servicing and maintenance requirements*. The digital display informs the user of the amalgam container level, operating temperature and hours worked for accurate servicing. Turbo Smart suction systems come complete with silencer and installation kit, further details can be found in our Catalogue. TUV certified 98.1% amalgam retention. Turbo Smart can be purchased with a fitted sound-reducing cabinet, which reduces noise levels to 51.6dB(A). Turbo Smart is supplied with a 3 year warranty*. An additional 2 year warranty* can now also be purchased, increasing the warranty from 3 to 5 years. For further information about this product and any available accessories please see our Catalogue. * Connection to the SmartApp is a requirement of the units warranty. Warranties are subject to Terms and Conditions of servicing schedule, additional 2 year warranty must be purchased with unit at point of sale.

Large Equipment

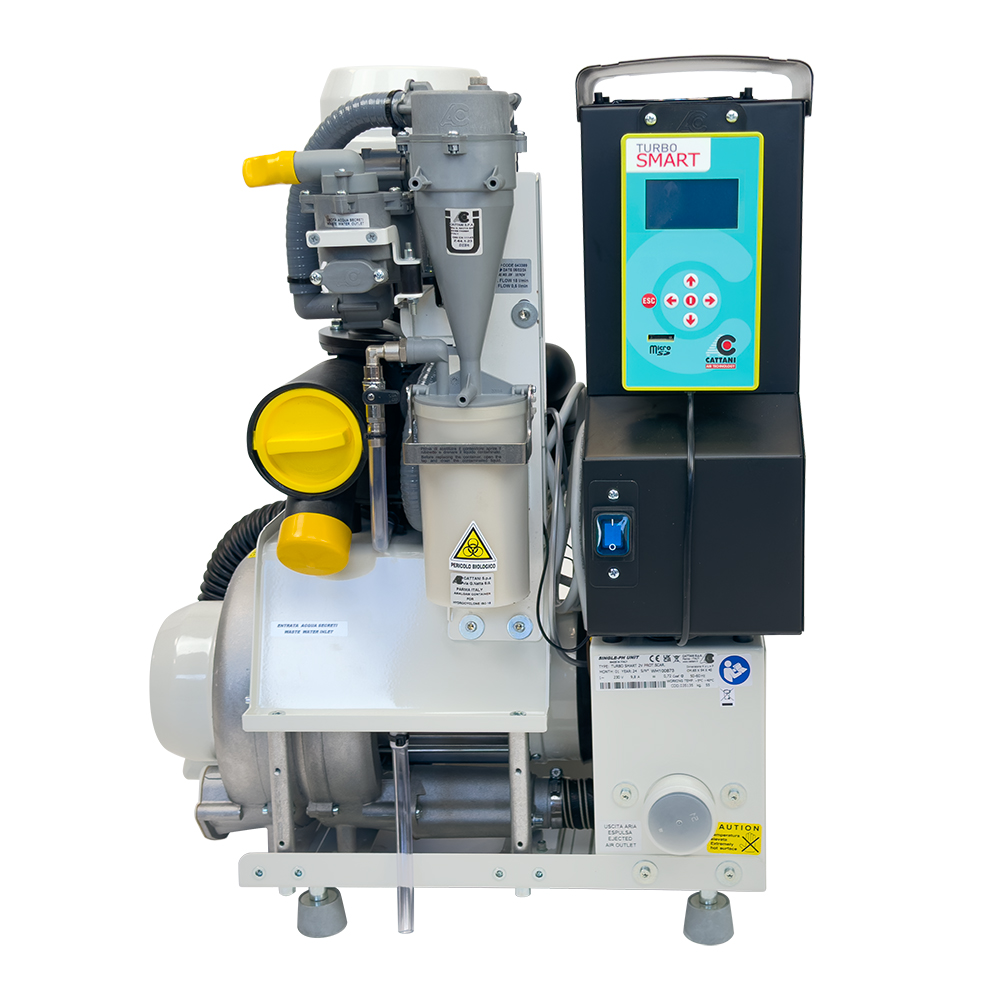

Turbo Smart 2V – Multiple Surgery Suction System

Turbo Smart 2V is the first direct replacement for any wet-ring system. Suitable for up to 4 surgeries, Turbo Smart 2V has an extremely powerful Uni Jet 75 2V motor, producing 270mbar negative pressure and capable of running continuously, (adequate cooling required) +5˚C – +40˚C. Turbo Smart 2V systems can automatically alter vacuum on demand and respond to any change in use from the surgeries. When a suction tip is opened, Turbo Smart speeds up to meet the extra demand. When a suction tip is closed, it slows down. The system adapts its speed to cope with extra demand and when other surgeries are using the unit. The result is efficient and more consistent suction. Connect this unit via the free Cattani SmartApp, which enables professionals to check unit status, alarms, servicing and maintenance requirements*. The digital display informs the user of the amalgam container level, operating temperature and hours worked for accurate servicing. Turbo Smart 2V suction systems come complete with silencer and installation kit, further details can be found in our Catalogue. TUV certified 98.1% amalgam retention. Turbo Smart 2V is supplied with a 3 year warranty*. An additional 2 year warranty* can now also be purchased, increasing the warranty from 3 to 5 years. For further information about this product and any available accessories please see our Catalogue. * Connection to the SmartApp is a requirement of the units warranty. Warranties are subject to Terms and Conditions of servicing schedule, additional 2 year warranty must be purchased with unit at point of sale.

Large Equipment

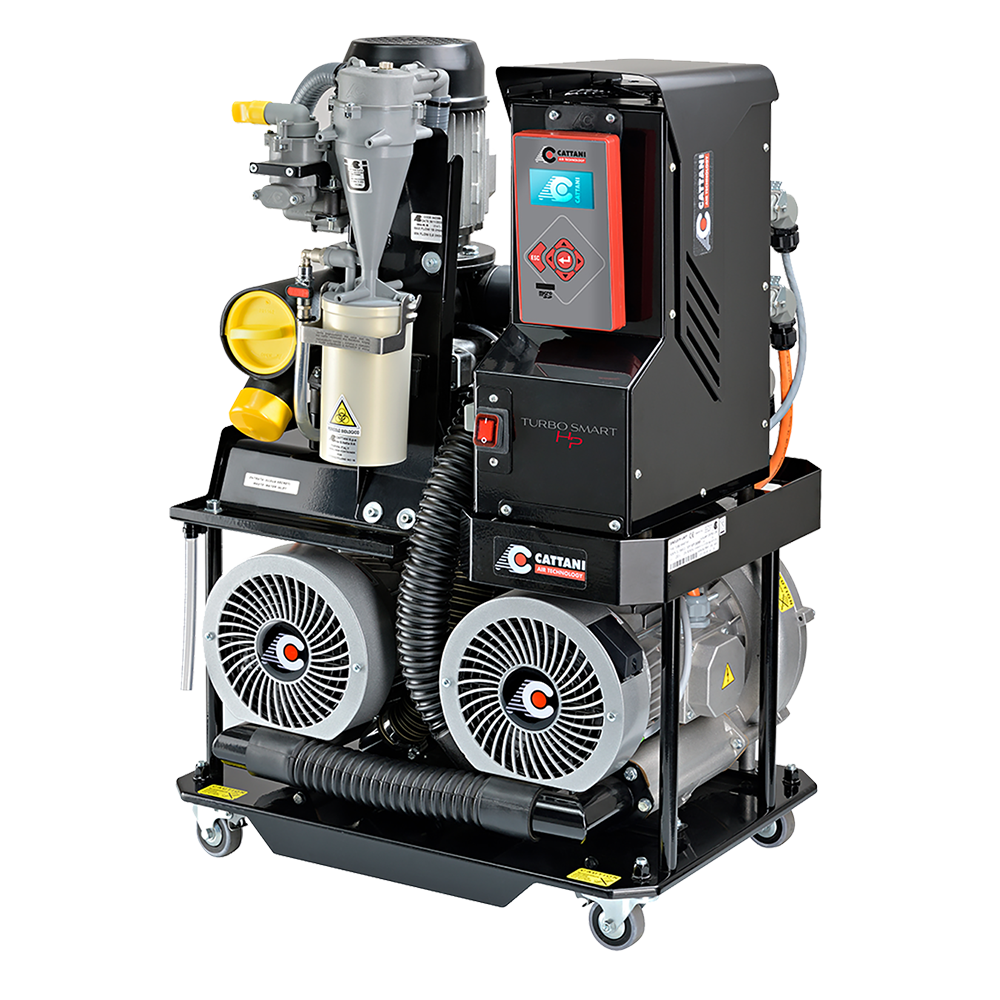

Turbo Smart HP – Multiple Surgery Suction System

Turbo Smart HP provides high power. Ideal for Conservation and Surgical applications. Turbo Smart HP systems can automatically alter vacuum on demand and respond to any change in use from the surgeries. Featuring a pair of Cattani’s extremely powerful, performance enhanced Uni Jet 75 motors. Providing high airflow and producing 340mbar negative pressure, for up to 4 surgeries. Turbo Smart HP is the ideal direct replacement for any wet-ring system. Connect this unit via the free Cattani SmartApp, which enables professionals to check unit status, alarms, servicing and maintenance requirements*. The digital display informs the user of the amalgam container level, operating temperature and hours worked for accurate servicing. Turbo Smart HP suction systems come complete with silencer and installation kit, further details can be found in our Catalogue. TUV certified 98.1% amalgam retention. Turbo Smart HP is supplied with a 3 year warranty*. An additional 2 year warranty* can now also be purchased, increasing the warranty from 3 to 5 years. For further information about this product and any available accessories please see our Catalogue. * Connection to the SmartApp is a requirement of the units warranty. Warranties are subject to Terms and Conditions of servicing schedule, additional 2 year warranty must be purchased with unit at point of sale.

Large Equipment

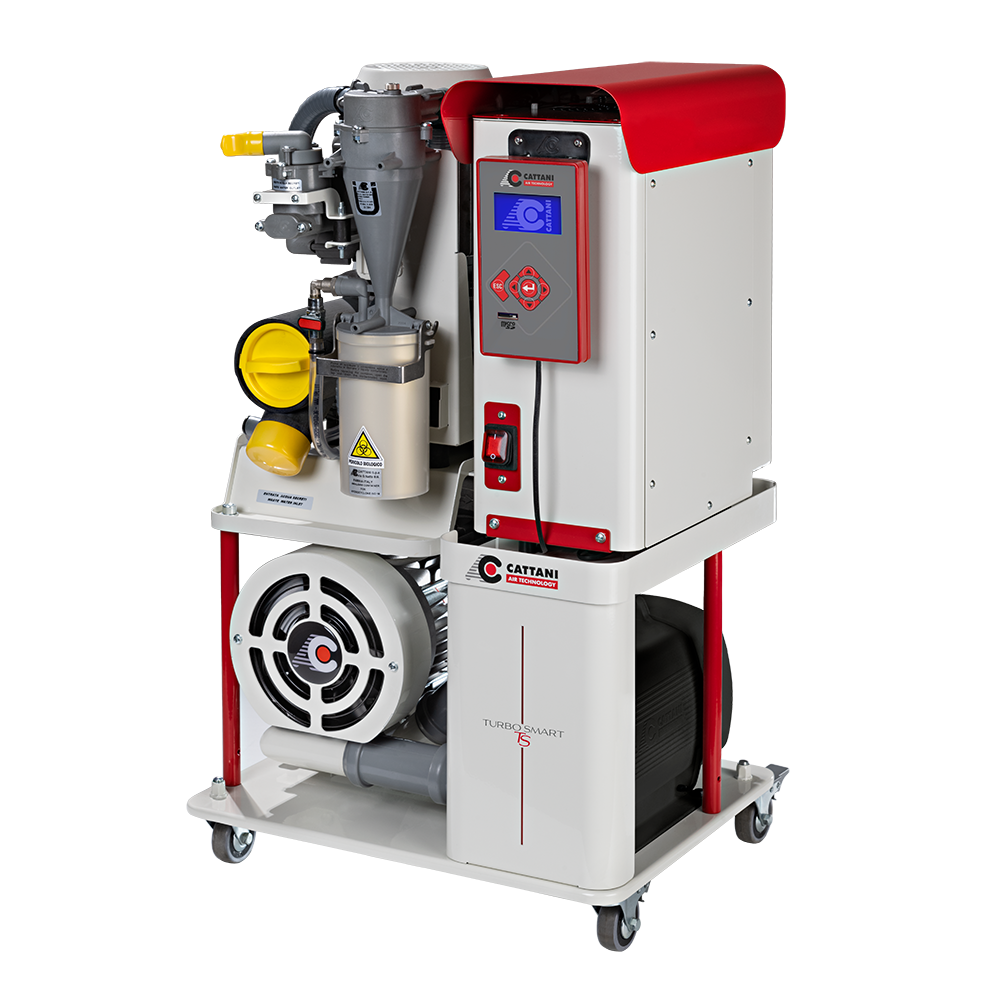

Turbo Smart TS – Multiple Surgery Suction System

Turbo Smart TS is a powerful, variable speed suction system, ideal for conservation and surgical applications providing high airflow and high vacuum power. This suction system is supplied for three surgery use and is upgradable to five surgeries if required. It has a programmable vacuum level which automatically alters vacuum on demand and responds to any change in use from the surgeries. It also includes a built-in HEPA filter. Turbo Smart TS also features Cattani’s multi-function digital display which informs the user of the vacuum level, temperature, servicing requirements, amalgam separation, fault diagnosis and programming. Thanks to the inverter, its electrical energy consumption is proportional to its use, these units have improved work performance, save electricity and increase reliability. Connect this unit via the free Cattani SmartApp, which enables professionals to check unit status, alarms, servicing and maintenance requirements*. Turbo Smart TS suction systems come complete with an installation kit, further details can be found in our Catalogue. TUV certified 98.1% amalgam retention. Turbo Smart TS is supplied with a 3 year warranty*. For further information about this product and any available accessories please see our Catalogue. * Connection to the SmartApp is a requirement of the units warranty. Warranties are subject to Terms and Conditions of servicing schedule.
